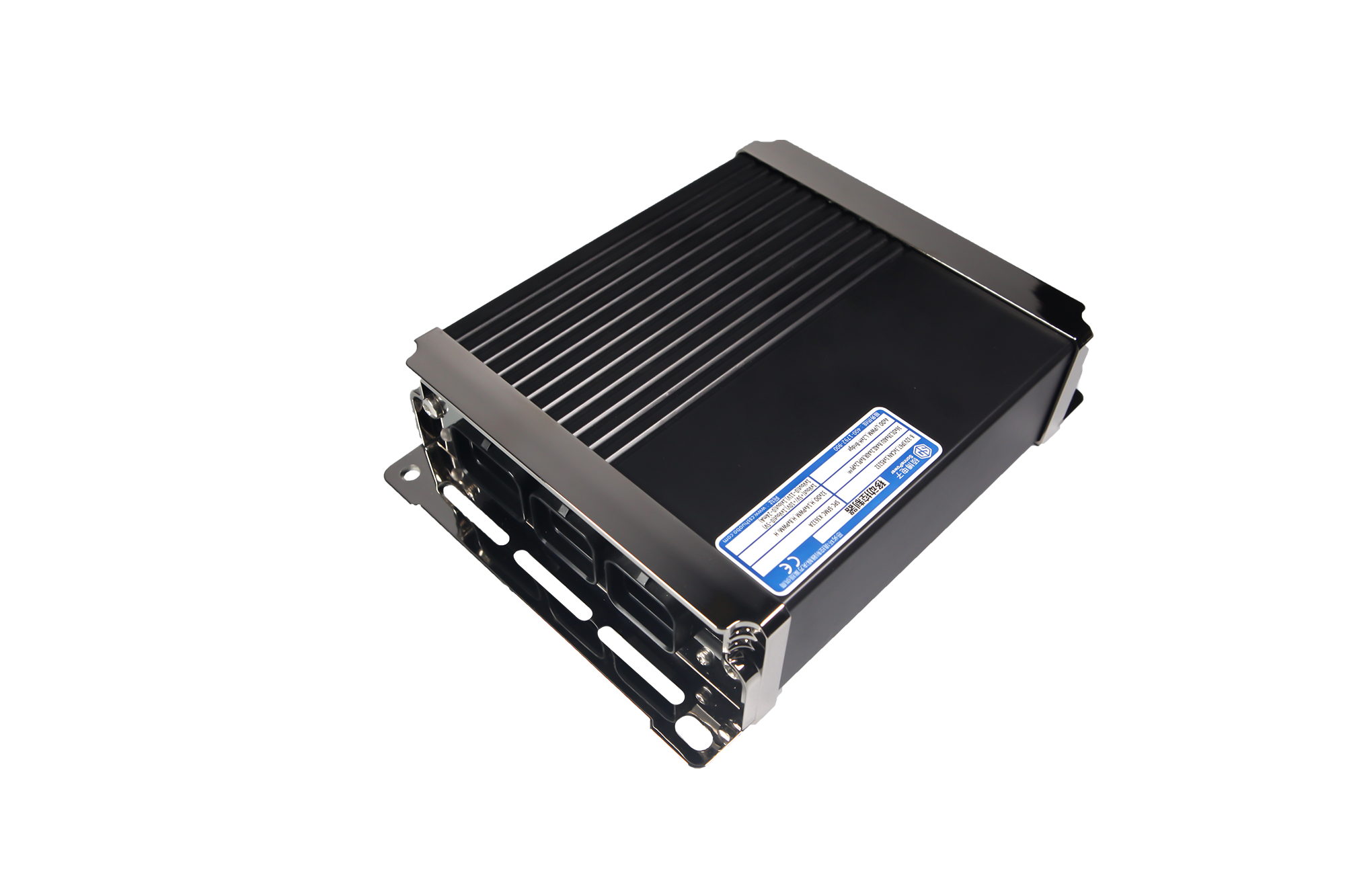

SPC-SFMC-X3632A

The mobile controller SPC-SFMC-X3632A is a mobile controller independently developed by SonnePower Electronics based on CODESYS3.5 programming. The product is equipped with 3 CAN buses, 1 RS232 serial communication, 66 IO resources, and high degree of port multiplexing. At the same time, the port also reuses output resources, which can directly drive the magnetic valve.It also has 14 PWM and 2 H-bridge functions. In addition, the product also has the advantages of high protection level, small size, high integration, high response speed, etc., making it an ideal choice for the main controller in distributed applications.

IO: 66 (36 inputs / 32 outputs)

Communication: 3×CAN，suopport CANOpen / SAEJ1939 / custom

28×AIU , 36×DI , 2×AIR , 8×AII , 8×PI , 2×PI（AB）

4×DOL , 8×PWMiH , 14×PWMH , 4×PWML , 2×H-Bridge

1 Blue status indicator

IP class:IP67
