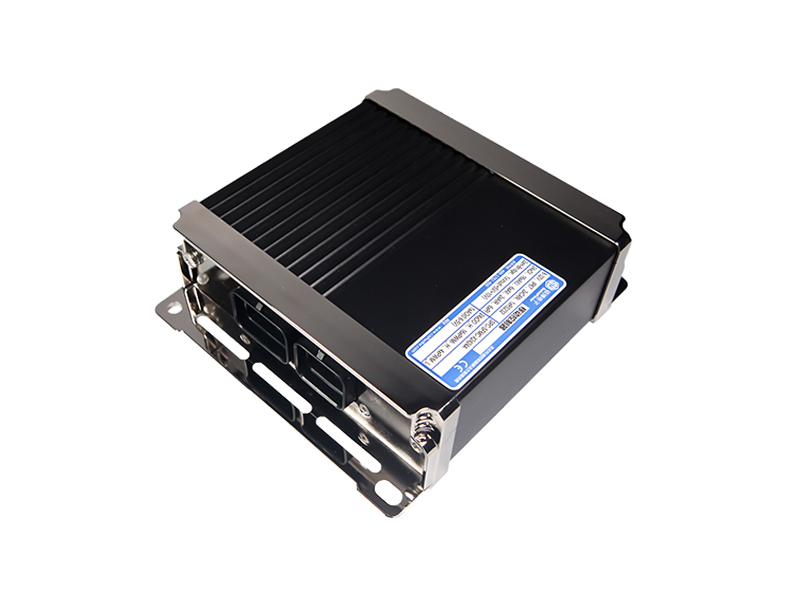

Modular controller for construction machinery SPC-SFMC-X2424C

Product Description Product Details Programming and Port Configuration

SPC-SFMC-X2424C is a specialized electronic control unit designed by SonnePower for construction machinery. The controller has wide practicality, reliable quality, strong stability, and high cost-effectiveness, fully considering the harsh working environment of outdoor mobile vehicles. It has excellent adaptability to wide temperature, high humidity, high strength, strong corrosion, and large vibration, and has a high protection level of IP67. It is widely used in environmental sanitation machinery, mining machinery, and lifting machinery Agricultural machinery and various engineering machinery fields.

Working voltage	8...32 V DC
Operation temperature	-40~+85℃
Protection class	IP67
weight	1.0 kg
Housing material	Cast aluminum shielded housing
Size(L×W×H)	171.3×155.3×51 mm
Assembly	4 pcs M5×30mm Screws
Connections	60-Pin AMP

Programming System	Supports CoDeSys 3.5 programming
CAN	2
RS232	1
Total I/O	44 （24 input/24 output）
Input	Configurable for up to 24 inputs
24×DIH/L;16×AIU;6×All; 2×AIR;6×PI; 2×PI(AB)24×DOH; 20×PWMH1×Vout(+5V/+10V,Ma×250mA)1×AO(0.6～5V,Ma×250mA)
