38 inputs, high port multiplexing rate
2 groups of AB quadrature pulse acquisition or 4-channel pulse acquisition

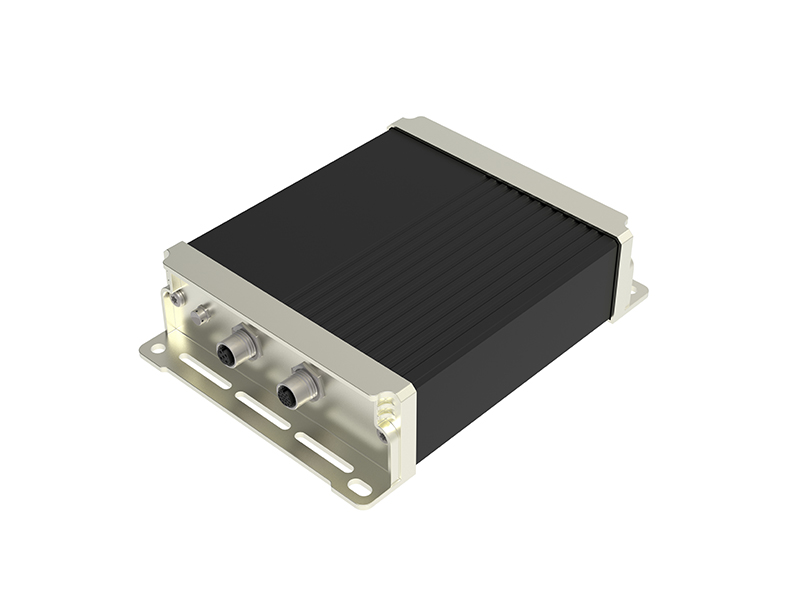

The SPL0601 mobile controller is a cutting-edge, Sonnepower self-developed product designed specifically for industries such as construction and sanitation machinery. It boasts superior protection and reliability, making it ideal for operation in harsh working environments. Whether exposed to outdoor installations, extreme temperatures, high vibration, strong shocks, or strong electromagnetic interference, the SPL0601 excels and delivers superior performance.
* High-speed computing. It gives your machine the high processing power to efficiently control and analyze critical data in real time. This capability not only improves operational efficiency, but also facilitates effective decision-making and optimizes performance.
* Rich interface: CAN, RS232, RS485 and Ethernet.
* High reliability: All ports support misconnection of power and ground, output ports have short circuit and overheat protection.
* Small size and high integration
* With D+function, supporting startup and flame detection
| Size | 206×151×51mm |
| Material | Cast aluminum shielded housing |
| Working voltage | 8～32V |
| Working temperature | -40～+85℃ |
| Programming Environment | CoDeSys3.5 |
| Total I/O | 66 (38 Inputs/30 outputs) |
| Protection class | IP67 |
*38 inputs, high port multiplexing rate
*2 groups of AB quadrature pulse acquisition or 4-channel pulse acquisition
*3 channels CAN, support CANOpen/SAEJ1939/custom
*4 channels standard RS232 communication port with configurable baud rate
*1 channel RS485, 1 channel Ethernet, support 100Mbit/s Ethernet communication
*3 channels adjustable voltage output, software configurable output voltage range (0.... .11V), maximum 10mA
*1 adjustable voltage power output, software configurable output voltage range (0.... .5V) or 0... .10V, max. current up to 250mA
*20 PWM high-side outputs / digital high-side outputs, can form 2 H-bridges, 10 DO high-side outputs
*1 blue status indicator
