In modern industrial control, DC motors are widely used due to their excellent speed regulation and broad range of applications. DC motors offer smooth speed control, a wide speed range, and the ability to frequently start, brake, and reverse without steps. These features make them ideal for automated systems in industrial settings. Among various DC motor control technologies, the H-Bridge circuit plays a crucial role. This article explores the working principle, functions, and practical applications of the H-Bridge in DC motor control.

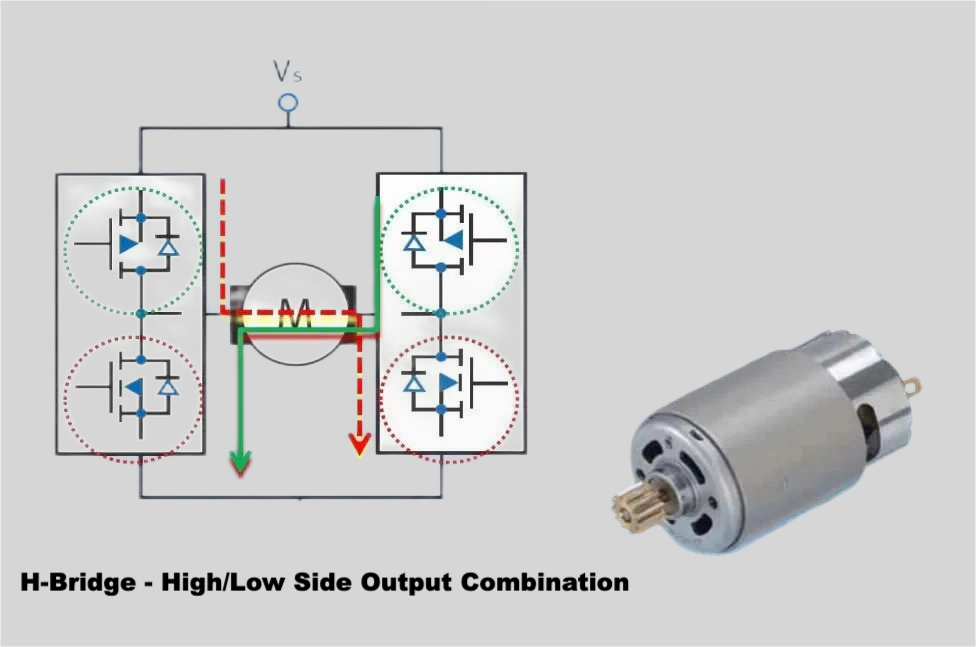

The H-Bridge circuit consists of four switching elements (typically transistors or MOSFETs) arranged in an "H" shape, which gives it its name. The fundamental function of the H-Bridge is to control the direction of current flow through the motor by adjusting the state of these switches. The working principle is as follows:
Forward Control: When two switches (e.g., Q1 and Q4) are closed, the current flows in one direction, making the motor rotate in one direction.
Reverse Control: When the other two switches (e.g., Q2 and Q3) are closed, the current flows in the opposite direction, causing the motor to rotate in the reverse direction.
Speed Control: By adjusting the on-time of the switches using Pulse Width Modulation (PWM), the average voltage supplied to the motor can be controlled, which in turn adjusts the speed of the motor.
In addition to controlling the rotation direction, the H-Bridge circuit can also provide motor speed regulation and protection, such as overcurrent and short-circuit protection.
When driving DC motors, the H-Bridge circuit offers more than just simple switching control. Below are some key functions of the H-Bridge in DC motor control:
Forward and Reverse Control: The H-Bridge can easily switch the direction of the motor by changing the switch configuration. This function is particularly useful in applications requiring frequent changes in rotation direction, such as automated production lines and robotics.
Speed Control: The H-Bridge can achieve continuous, stepless speed regulation. By adjusting the PWM duty cycle, the speed of the motor can be precisely controlled to meet the varying needs of different applications.
Overcurrent and Short-circuit Protection: The H-Bridge circuit can monitor the current flowing through the motor in real-time. If overcurrent or short-circuit conditions occur, the circuit can automatically disconnect to protect both the motor and the drive circuit. This is crucial for extending the life of equipment and enhancing system stability.
Efficient Drive: Compared to traditional relay-based control, the H-Bridge circuit can directly drive the DC motor without requiring intermediate relays. This reduces energy loss, improves control efficiency, and simplifies circuit design.
In many of SonnePower' products, the H-Bridge functionality is integrated to allow precise control of DC motors. Some of the controllers with H-Bridge functionality include:
SPC-STW-2612CMS (26-point controller): This controller integrates the H-Bridge function, enabling direct motor control, speed regulation, forward/reverse control, and overcurrent protection, making it ideal for precise motor control applications.
SPC-SFMC-X3632A (66-point controller): This controller supports up to 66 input/output points and integrates the H-Bridge circuit, allowing it to drive various types of DC motors, widely used in automated equipment.
SPC-SFMC-X2214A (29-point controller): This controller also features H-Bridge functionality, enabling precise speed and direction control for DC motors.
SPC-CFMC-D20N24A2 (44-point controller): With the integrated H-Bridge, this controller can drive DC motors and allow for precise speed and direction control.
SPC-SDIO-1412 (Smart Distributed I/O Controller): This product not only includes the H-Bridge function but also provides smart distributed control, making it ideal for complex automation systems, such as throttle control and linear actuator control.
These products with integrated H-Bridge functionality provide precise motor control, ensuring motor safety and stability in various applications like production line automation, robotics, and throttle control.
The H-Bridge circuit is widely used in industrial control, particularly in driving DC motors. Some typical applications include:
Automated Production Lines: The H-Bridge circuit can drive DC motors for precise control, enabling high-speed starts, braking, and direction switching, improving production efficiency.
Robotics: Robots often need to control multiple motors for movement, rotation, and manipulation tasks. The H-Bridge circuit allows for precise speed and direction control, making it an essential part of robot control systems.
Throttle Control: In applications like automated linear actuators, the H-Bridge can control the extension and retraction of the actuator with high precision, as in throttle control.
Power Tools: Many power tools (e.g., electric wrenches, screwdrivers) use DC motors as a drive source. The H-Bridge circuit controls the motor’s start/stop, speed, and direction.
As an efficient and flexible DC motor control solution, the H-Bridge circuit has become an essential component in industrial automation and electric-powered devices. It not only enables motor speed regulation and direction control but also provides overcurrent protection and efficient driving. Shobo Electronics' controllers, equipped with H-Bridge functionality, provide strong support for a wide range of applications, meeting the demands for precision, efficiency, and safety in modern industrial systems.
As technology continues to advance, the application of H-Bridge circuits will further expand, offering innovative solutions for many industries.
