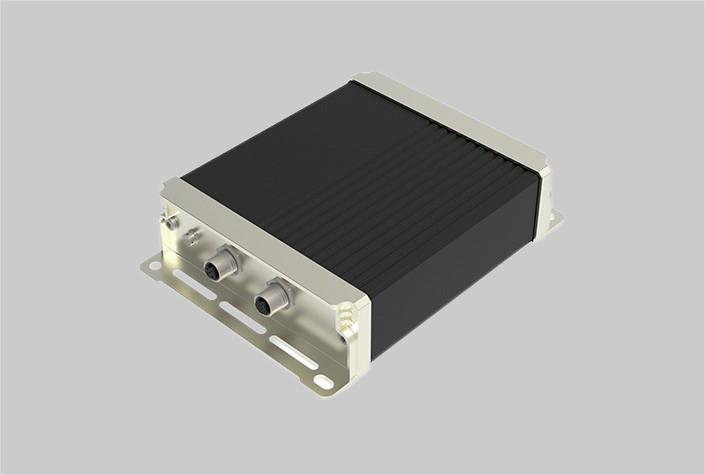

The SPL0601 controller, developed by SonnePower, is a versatile, high-performance mobile controller designed for demanding oilfield and petroleum machinery applications. Built with advanced features and based on CoDeSys 3.5 programming, it offers powerful capabilities, extensive communication interfaces, and robust protection. With 3 CAN buses, 4 RS232 ports, 1 RS485, 1 Ethernet port, and 66 highly multiplexed I/O channels (38 inputs and 30 outputs), the SPL0601 is ideal for complex automation tasks. Its output ports can directly drive solenoid valves and support 20 PWM outputs and 2 H-bridge functionalities.
Key Features
Advanced Programming Capability:
Supports CoDeSys 3.5, enabling flexible and robust customization for a wide range of applications.
High-Performance I/O Resources:
o 38 input channels with high multiplexing capability.
o 2 AB quadrature pulse inputs or 4 independent pulse inputs.
o 20 high-side PWM/digital outputs, configurable for 2 H-bridges, and 10 high-side DO outputs.
Comprehensive Communication Interfaces:
o 3 CAN Buses: Fully compatible with CANOpen, SAE J1939, and custom protocols.
o 4 RS232 Ports: Configurable baud rates for diverse communication requirements.
o 1 RS485 Port: For robust industrial communication.
o 1 Ethernet Port: Supports 100 Mbit/s Ethernet communication for high-speed data transfer and diagnostics.
Configurable Voltage Outputs:
o 3 adjustable voltage outputs (0-11V), with a maximum output current of 10mA each.
o 1 adjustable voltage power output (0-5V or 0-10V), with a maximum current of 250mA.
Built-In Diagnostics and Status Monitoring:
o A dedicated blue status indicator LED for real-time system monitoring.
Rugged and Reliable Design:
o IP67 protection rating ensures resistance to water, dust, and extreme environmental conditions.
o Robust construction supports reliable operation in demanding oilfield and industrial environments.
Applications
The SPL0601 controller is tailored for advanced petroleum machinery control, including fracturing trucks and other heavy equipment requiring precise automation and durable electronic systems. Its high communication bandwidth, multiplexed I/O, and PWM functionality make it an essential component for modern oilfield operations.
