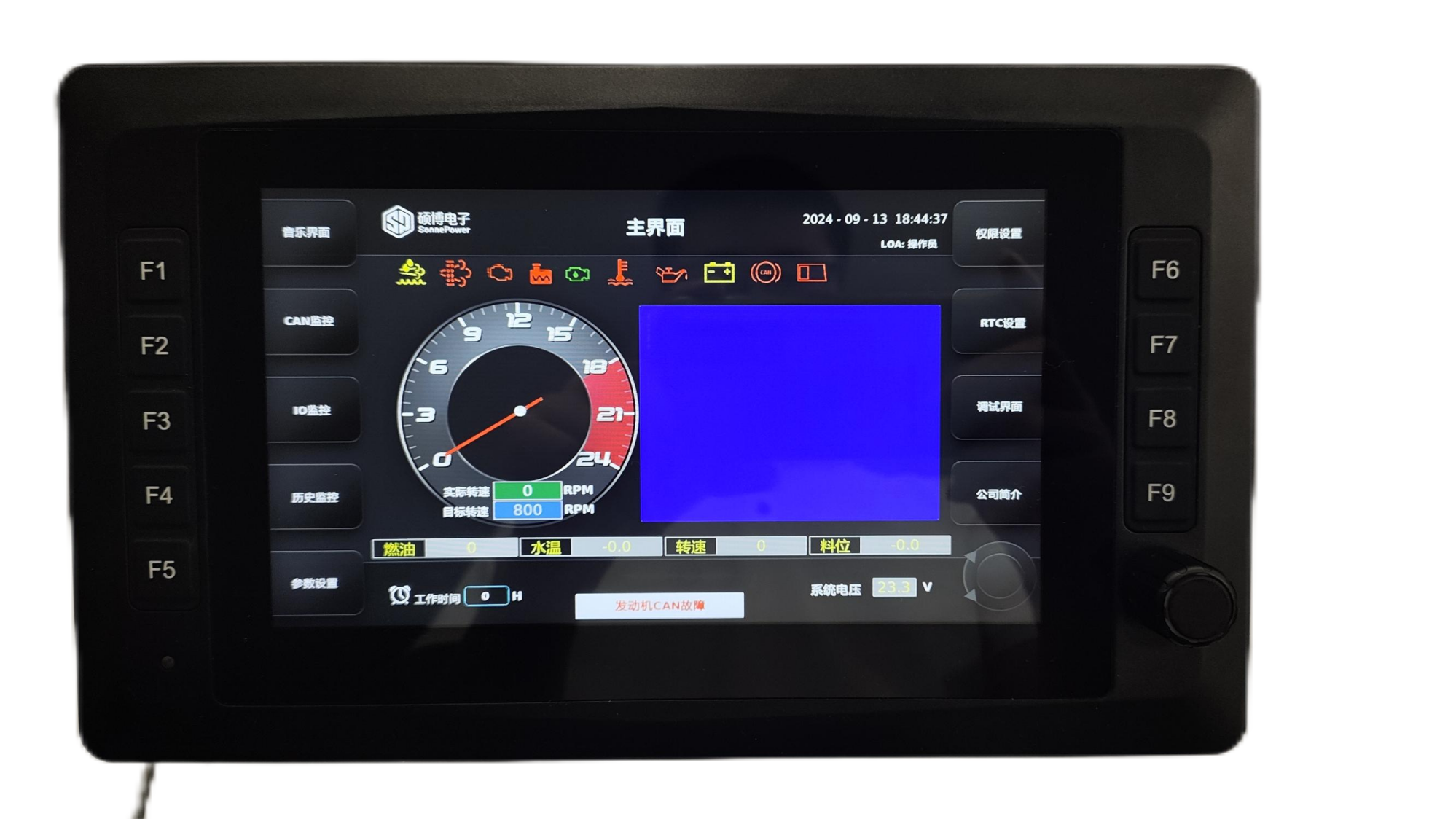

The SPD-070-Fx series, developed by SonnePower is a high-performance capacitive touch display designed for construction machinery and other special equipment applications. Featuring 8 physical buttons and 1 rotary knob (with push functionality), this display offers intuitive and flexible user interaction. With a resolution of 1024x600, a contrast ratio of 700:1 (typical), and brightness of 600 cd/m², it delivers crisp visuals even in challenging lighting conditions. The SPD-070-Fx supports Codesys 3.5 programming, enabling robust customization for various operational needs.
Key Features
· High-Resolution Display: 1024x600 resolution, 700:1 contrast, and ≥600 cd/m² brightness for clear and precise visual output.
· Extensive Communication Interfaces:
o 5 CAN bus ports, fully compatible with Codesys 3.5.
o 1 RS232 serial communication port with configurable baud rates.
o 1 USB 2.0 OTG for debugging, software updates, and program downloads.
o 1 Ethernet port dedicated to debugging and downloading applications.
o 4 AHD/TVI/CVI/CVBS video inputs, supporting high-definition video monitoring.
· Robust I/O Resources: 20 I/O channels with integrated safety mechanisms.
o Input ports support protection against misconnection to power or ground.
o Output ports feature short-circuit and overheat protection.
· Voice Alarm Integration: Built-in audio feedback system for alerts and warnings.
· Bluetooth Connectivity: Allows wireless firmware updates via a mobile app for added convenience.
· Enhanced User Interaction:
o 18-position rotary knob for precise adjustments.
o Intuitive capacitive touch interface.
· Industrial-Grade Durability:
o IP65 protection rating, ensuring resistance to water, dust, and vibration.
o All components designed for rugged environments and reliable performance.
· Flexible Mounting Options: Supports both embedded mounting and universal joint fixed installation.
The SPD-070-Fx is ideal for applications requiring seamless integration of human-machine interaction, advanced control features, and real-time video monitoring. Its high level of compatibility and robust design make it a powerful solution for modern construction machinery and other special equipment.
