SonnePower's SPQ-WT-B01 Panel Controller | High-Performance Industrial Control Core Component for Multi-Scenario Applications

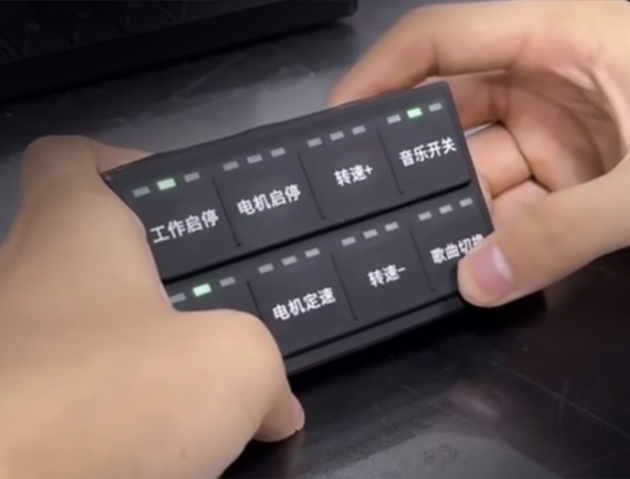

The SPQ-WT-B01 panel controller launched by SonnePower is a high-performance multifunctional controller featuring a single CAN communication interface, eight buttons, and eight high-side outputs. It can realize numerous functions such as motor drive bus control, load output control, safety warnings, and specific music playback. The controller interacts with other controlled or master devices via the CAN communication protocol, providing powerful functionality and stable performance.
Main Technical Parameters
Dimensions: 105.1×62.1×42.6mm
Operating Voltage: 8…32VDC
Button Lifespan: 100,000 times
Outputs: 8-channel DOH high-side output, maximum rated driving current of 0.5A
CAN Communication Port: Baud rate 20kbits/s…1 Mbits/s (default setting 250kbits/s)
Operating Temperature: -40…85℃
Protection Level: IP20
With the CAN communication function, the controller can connect to motor drivers to achieve control over the start, stop, and speed adjustment of pumps, suitable for agricultural irrigation, garden sprinkling, sewage treatment, and other fields.
Control of other motor-driven equipment: In addition to pumps, the controller can also be used to control other motor-driven devices such as fans and mixers, applicable in industrial production and environmental control.
The controller has eight built-in high-side outputs that can directly drive valve-type loads, such as controlling hydraulic and pneumatic systems, applicable in machinery manufacturing fields like sanitation machinery. Other output controls: The output control function can be expanded as needed, such as controlling lighting, heaters, and other devices, applicable in lighting and heating fields.
The controller can receive reversing signals and play reversing reminder voice prompts, alerting the driver to pay attention to safety, applicable in equipment like forklifts that require reversing functionality. Water Level Warnings: The controller can detect the water level in tanks and play prompt voice messages when the water level is too low, reminding operators to add water in a timely manner to prevent equipment damage, applicable in tanks and liquid storage scenarios.
The controller has a built-in music playback function to meet the needs for preset music playback in specific scenarios.
Volume Adjustment: The controller supports volume adjustment, meeting users' real-time control of volume levels.
The controller can connect with sensors, actuators, and other devices to achieve more complex control functions such as temperature and humidity control.
Custom Development: The controller supports custom development, allowing for the development of specific control programs based on user needs to meet different application scenarios.
