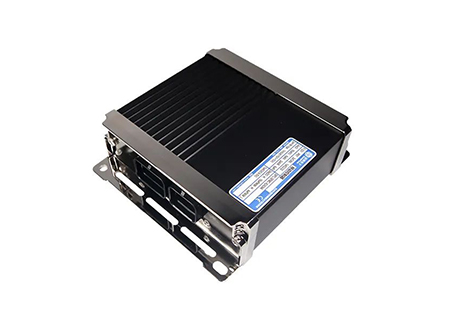

Pulse Width Modulation (PWM): A Common Technology in Construction Machinery Controllers
In the field of electronics, Pulse Width Modulation (PWM) is a widely applied technology. By altering the pulse width of a signal, it adjusts the average power output, thereby allowing effective control over voltage or current. In construction machinery controllers, PWM plays a critical role, providing efficient and precise control methods for mechanical systems.
The working principle of PWM is relatively simple and straightforward. Within a fixed cycle, signal modulation is achieved by varying the pulse width. Specifically, the pulse width determines the average power of the signal. If the pulse width increases, the average power rises accordingly; conversely, if the pulse width decreases, the average power is reduced. The advantage of this modulation method is that the device can adjust output power without changing the frequency, simply by modifying the duty cycle.
Motor Speed Control
Construction machinery is often equipped with motors that drive various moving parts. PWM in the controller can be used to adjust motor speed by changing the duty cycle of the voltage or current, enabling precise speed control.
Precise Positioning
For applications requiring precise positioning or motion control, PWM can be used to control the movement of actuators, such as hydraulic cylinders or electric linear actuators. By adjusting the pulse width, the system can achieve accurate position control.
Energy Efficiency
PWM technology improves energy efficiency. In construction machinery that operates over long periods, using PWM for power control can reduce energy waste, thereby enhancing the overall efficiency of the system.
Fault Protection
PWM control can also be used to implement fault protection in systems. By monitoring current and voltage, the system can detect abnormal conditions in real-time and take appropriate measures to protect equipment from potential damage.
In practice, PWM is widely applied in construction machinery controllers, such as in excavators, loaders, and bulldozers. For example, in hydraulic systems, PWM is used to control the movement of hydraulic cylinders, enabling precise control of buckets or excavator arms. In motor-driven systems, PWM adjusts motor speed to ensure stable performance under varying workloads.
In conclusion, Pulse Width Modulation is a powerful control technology that provides construction machinery controllers with flexible and efficient control mechanisms. It ensures stable operation of mechanical systems under various working conditions and enables precise dynamic control.
