In the mining and quarrying industry, mining trucks play a crucial role in ensuring efficient and high-production operations. These trucks work in close coordination with key equipment such as drills, electric shovels, bulldozers, and graders in open-pit mining operations. Often required to operate for multiple consecutive days with short and repetitive driving distances, mining trucks must function reliably and efficiently under harsh working conditions. The controller, as the "brain" of mining trucks and other heavy machinery, directly affects their operational and safety performance.
The 120-ton electric mining dump truck, featuring an upgradeable and replaceable pure electric powertrain, integrates a power system, energy management system, and AC drive system. By replacing traditional diesel engines with a powerful battery pack, this electric truck can charge for just one hour and operate for up to eight hours continuously. Compared to traditional diesel-powered mining trucks, this electric mining truck reduces energy consumption by 50%, lowers operating and maintenance costs by 20%, and can reduce CO2 emissions by approximately 1,400 tons per year per truck, realizing true "zero emissions."
SonnePower has developed a robust and reliable controller designed specifically for mobile vehicles and heavy machinery electrical control systems. With a compact and sturdy design, the controller offers a rich set of input/output channels that can be flexibly configured to build electric control systems quickly, saving installation space and reducing electrical costs. These features are especially crucial for mining trucks, which require a stable controller performance, a higher number of input/output points, and complex control logic.
SonnePower's controllers feature CAN bus communication, supporting protocols like CANOpen, SAEJ1939, and custom configurations. CAN bus communication is highly cost-effective and offers excellent reliability, real-time performance, flexibility, and strong anti-interference capabilities. In the harsh environments typical of mining operations, these qualities contribute to enhanced safety, ensuring the truck is always operating at its peak performance. This facilitates intelligent and safe mining production in open-pit coal mines.

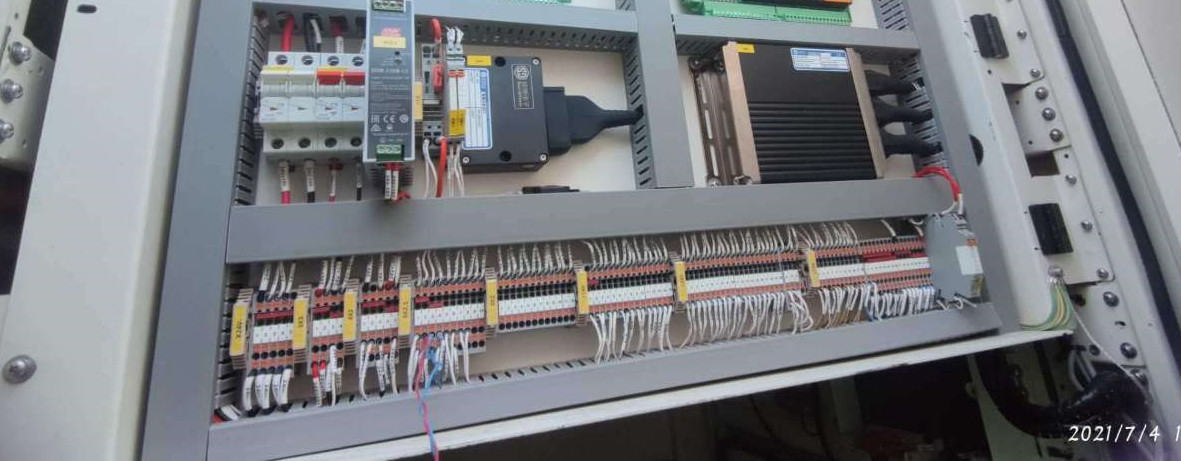

The 120-ton mining truck's high-pressure control cabinet is equipped with SonnePower's SPC-SFMC-X3632A controller and SPC-SDIO-S1212 intelligent I/O module.

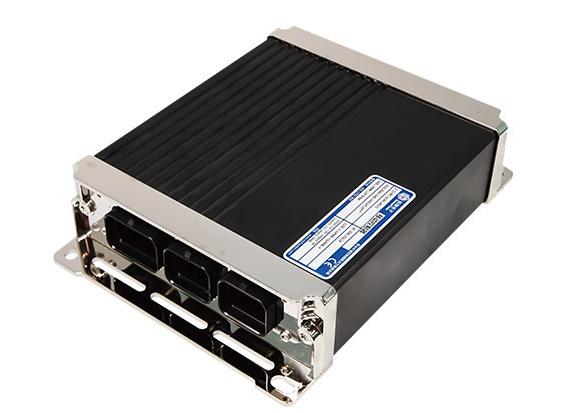

SPC-SFMC-X3632A Controller Features:
Developed by SonnePower, the SPC-SFMC-X3632A is a mobile control unit programmed using CoDeSys 3.5.
It features 3 CAN bus interfaces, 1 RS232 serial communication port, and 66 I/O resources with high port multiplexing.
Directly drives solenoid valves and supports 14 PWM channels and 2 H-bridge functions.
Its compact size, high protection grade, and fast response speed make it an ideal choice for distributed applications, particularly as a master controller in mining trucks.
The controller supports a range of advanced features:
CoDeSys 3.5 programming support.
36 inputs, with high port multiplexing.
3 CAN buses, supporting CANOpen, SAEJ1939, and custom protocols.
Up to 36 inputs and 32 outputs.
Voltage and current outputs configurable between 0-5V, 0-10V, 0-11V, and 0-20mA.
RS232 communication with configurable baud rate.
14 PWM outputs, 4 of which can be multiplexed for low-side PWM control, and up to two H-bridges.
D+ signal support for start/stop detection.
Protection against short circuits, overheating, and incorrect power connections.
IP67 protection grade, ensuring it can withstand harsh industrial environments.
SPC-SDIO-S1212 Intelligent I/O Module:
The SPC-SDIO-S1212 is an economical I/O module developed by SonnePower, equipped with 1 CAN bus and 12 I/O resources. The module provides high port multiplexing, capable of collecting high-level signals, voltage readings, and other inputs. The output resources are DOH, rated for 3A, and can directly drive solenoid valves.
SonnePower's controllers and I/O modules provide a reliable, flexible, and cost-effective solution for the electric control systems of mining trucks. With features such as high I/O capacity, CAN bus communication, real-time control, and excellent environmental resilience, these products are tailored to meet the rigorous demands of the mining industry. Whether improving operational efficiency, reducing environmental impact, or enhancing safety, SonnePower's advanced solutions are helping to drive the future of electric mining vehicles and automation in the mining sector.
