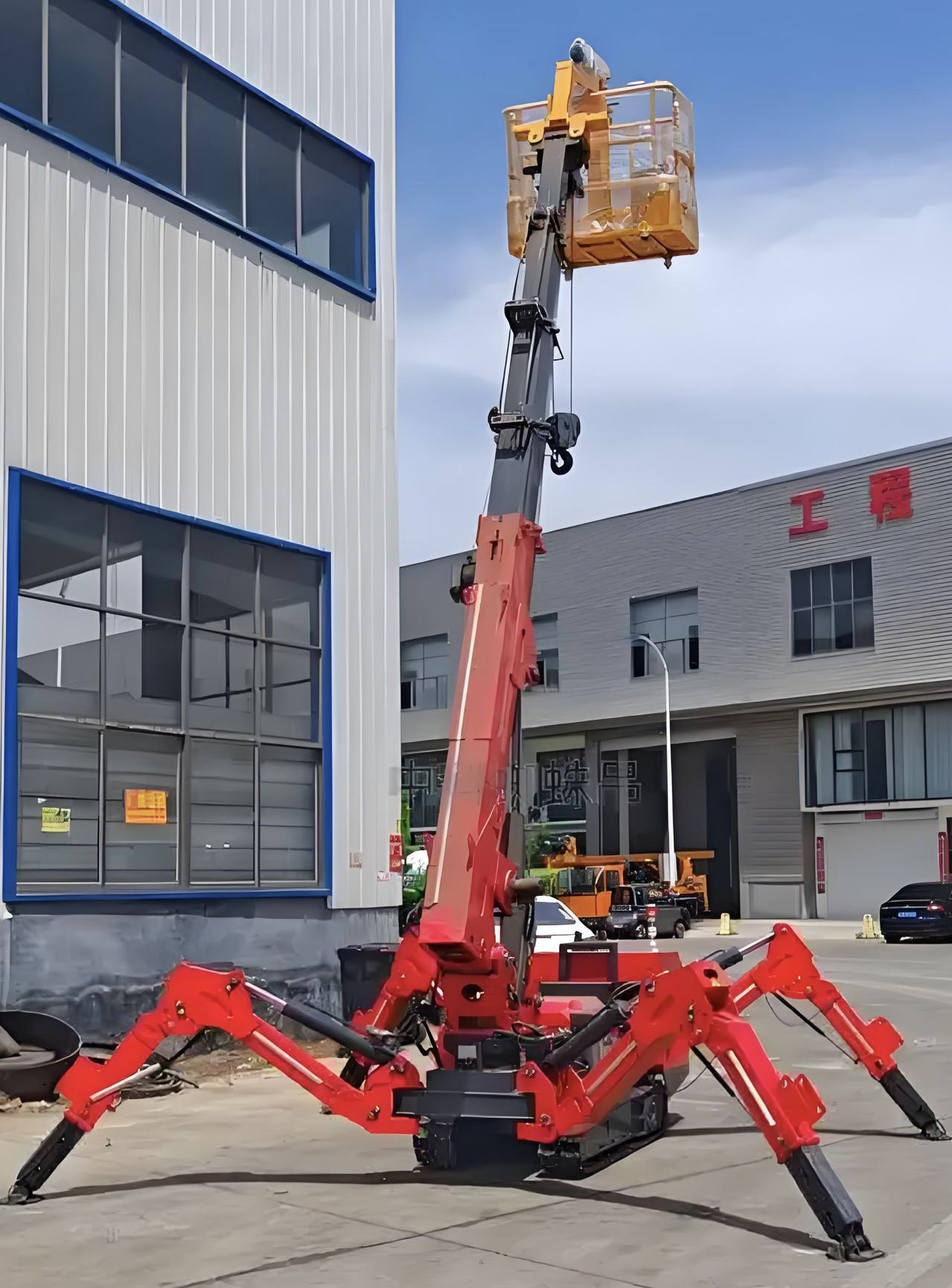

SonnePower has developed an advanced electric control system for spider-type aerial work platforms. At its core, the system integrates the SPD-070-Bx 7-inch display, the SPC-SFMC-X3632A controller, and the SPC-SDIO-1412 intelligent I/O module, along with inclinometer and pressure sensors. These components communicate seamlessly via a CAN bus network to receive commands from a wearable remote controller and enable precise execution of critical operations. These include engine start/stop, tracked movement, stabilizer deployment and retraction, turret rotation, boom tilting and extension, and basket rotation and tilt.
This robust system is designed to meet the safety, reliability, and precision requirements of aerial work in confined spaces. Its compact structure, high protection rating, and ability to function in a wide voltage range (8–32 VDC) and extreme temperature conditions make it ideal for demanding applications.
The SPC-SFMC-X3632A is the core of the system, installed on the turret to act as the vehicle's primary control hub. It processes remote control commands to manage engine operations and hydraulic valve actuation, enabling smooth execution of various work functions.
Key Features:
High protection rating for exposed installation on the vehicle body.
Precise processing of remote control signals for reliable operation.
Robust performance under harsh environmental conditions.
The 7-inch SPD-070-Bx display provides an intuitive interface for monitoring and controlling platform operations. Its user-friendly design ensures operators have clear and precise information about the vehicle’s status at all times.
The SPC-SDIO-1412 intelligent I/O module is mounted in the platform's electrical control box. It communicates with the core controller via CAN bus to perform two critical tasks:
Collecting signals from switching components on the turret box.
Driving indicator lights and other visual aids for real-time operational feedback.
The system incorporates advanced sensors, such as inclinometers and pressure sensors, to provide real-time feedback and ensure safe operation. These inputs allow for precise control of stabilizer deployment and load balancing, minimizing risks during aerial work.
Designed for compact spider-type aerial work platforms, the system’s components are optimized for space-constrained environments. Its high degree of integration and compact structure ensures reliable operation in challenging conditions without sacrificing performance.
This system is ideal for aerial work platforms used in construction, maintenance, and other high-altitude applications requiring precision and reliability in tight or difficult-to-access spaces.
The advanced electric control system developed by SonnePower demonstrates cutting-edge innovation in aerial platform technology. By integrating high-performance controllers, intelligent I/O modules, and user-friendly interfaces, the system provides a comprehensive solution for modern aerial work platforms. Its adaptability, safety features, and robust design position it as a leading choice for high-altitude operations in confined spaces.
