Communication: 1×CAN
Protocol: User-defined
Resource: 8 keys

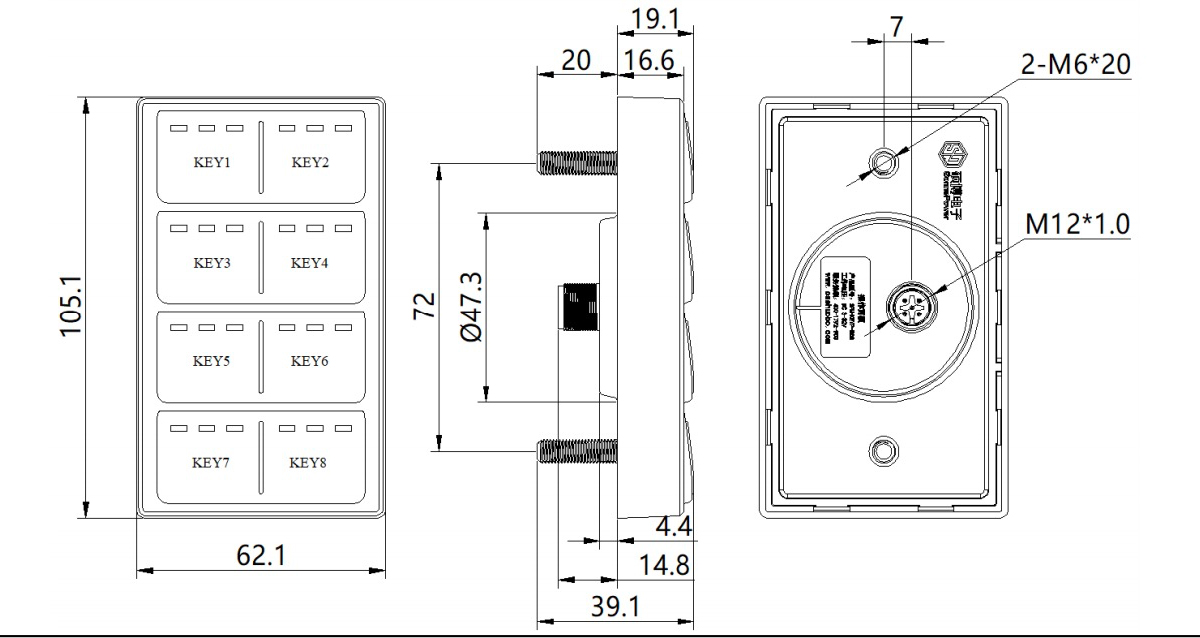

| Size | 105.1×62.1×39.1 mm |
| Material | plastic shell + silicone panel |
| Working Voltage | 8～32V |
| Working temperature | -40～+85℃ |
Communication: 1×CAN
Protocol: User-defined
Resource: 8 keys
Status Indicator: RGB Monocolor LED
Backlight: White Adjustable Brightness
Customized Key Pattern on Demand
With hemlines
32-bit high performance MCU
1 channel CAN, support customization
1 high side output, can drive load directly
Key life up to 500,000 times
High brightness white backlight
All input ports support misconnection of power and ground
All output ports with short-circuit and over-temperature protection
Protection rating: IP65
Sanitation truck control system
Crane control system
Excavator control system
Crawler crane control system
