7" Screen Display

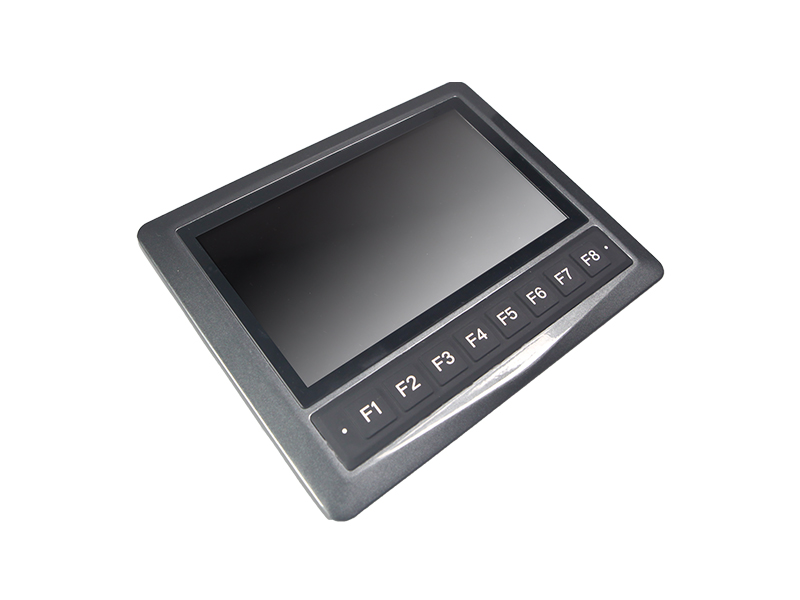

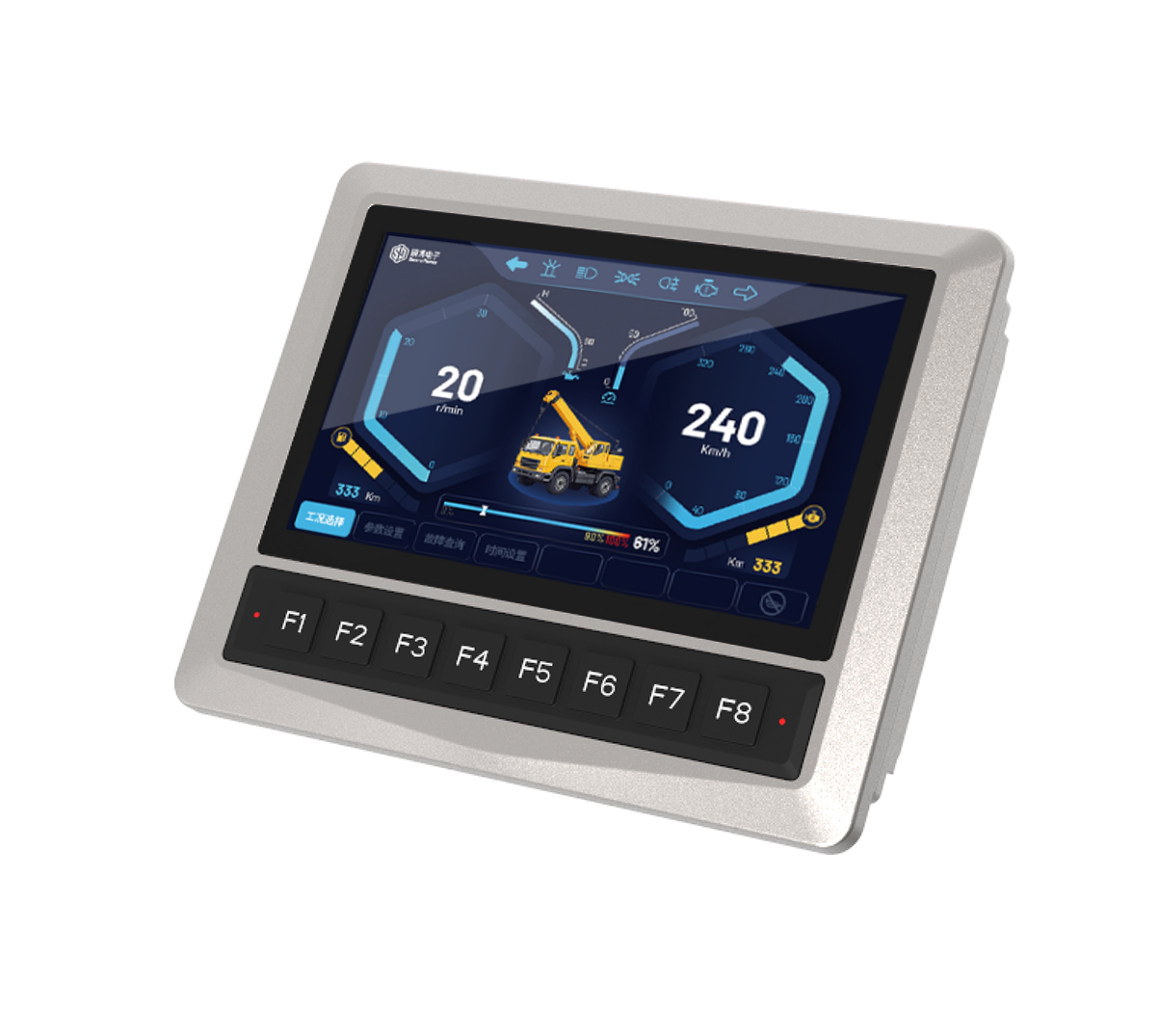

SPD-070-Cx series 7-inch display

SPD-070-Cx series 7-inch display

The 7 inch mobile machine display SPD-070-Cx series features 1 CAN bus interface, 1 Ethernet communication port, and a resolution of 800x480. Additionally, 7 Inch Mobile Machine Display Spd-070-Cx Series  offers high protection level, high integration and fast response speed, making it an ideal choice for displays in distributed application scenarios.

7 Inch Mobile Machine Display Features:


●Programming Support: CoDeSys 3.5 programming.


●Connectivity: 1 CAN port with CANOpen support.


●Communication Interface: 1 Ethernet interface.


●User Input: 8 buttons for user interaction.


●Status Indicators: 2 LEDs for status indication.


●Display: 7-inch screen with 800x480 resolution and 24-bit color.


●Protection: All input ports equipped with power supply misconnection protection.


●Water and Dust Resistance: IP65 protection level.


7 Inch Mobile Machine Display Features:


●Casing: Durable aluminum alloy casing for rugged environments.


●Weight: Lightweight design, only 0.4kg.


●Operating Temperature: Wide operating temperature range from -20 to 70℃.


●Protection Level: IP65 rating for water and dust resistance.


●Display Type and Size: Vibrant 7-inch 24-bit color screen.

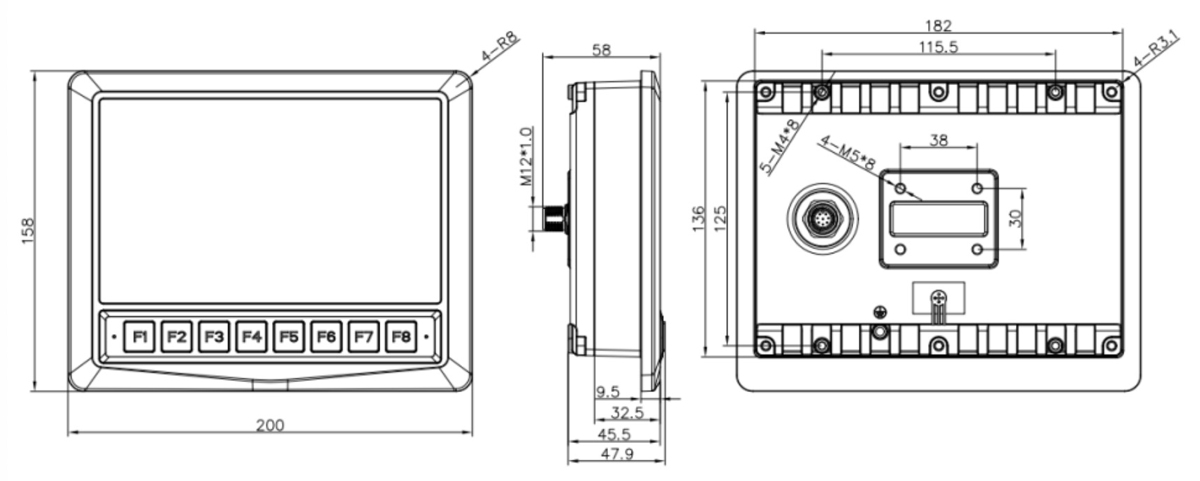

●Display Area: Ample display area of 154.07×85.98.


●Brightness Options: Adjustable brightness with options of 400 or ≥600cd/m2.


●Resolution: Crisp resolution of 800×480 for clear visuals.


●Programmable Function Keys: 8 programmable function keys for customizable operations.


●Backlight Keys: 8 backlight keys with independent display and adjustable backlight control.


●Operating Voltage: Wide operating voltage range from 8 to 32 V DC.


●Undervoltage Detection: Automatically detects undervoltage situations (UEE≤8V) with a response time of ≤350ms.


●Power Consumption: Low power consumption, ≤300mA (without external load at 24V voltage).


●Processor: Equipped with Cortex A7 high-performance MCU for efficient processing.


SonnePower's Spd-070-Cx Series 7 Inch Mobile Machine Display, where customization meets excellence. At SonnePower, we go beyond standard products, offering tailored solutions to meet your unique needs.

Elevate your operations with SonnePower—your partner in customization and innovation! Contact us to get the most competitve quotation Today!
SPD-070-Cx series 7-inch display
