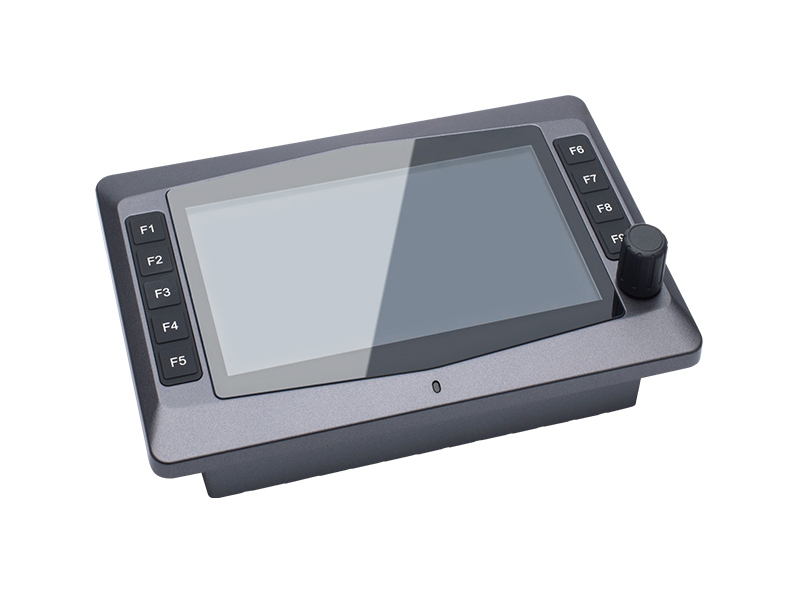

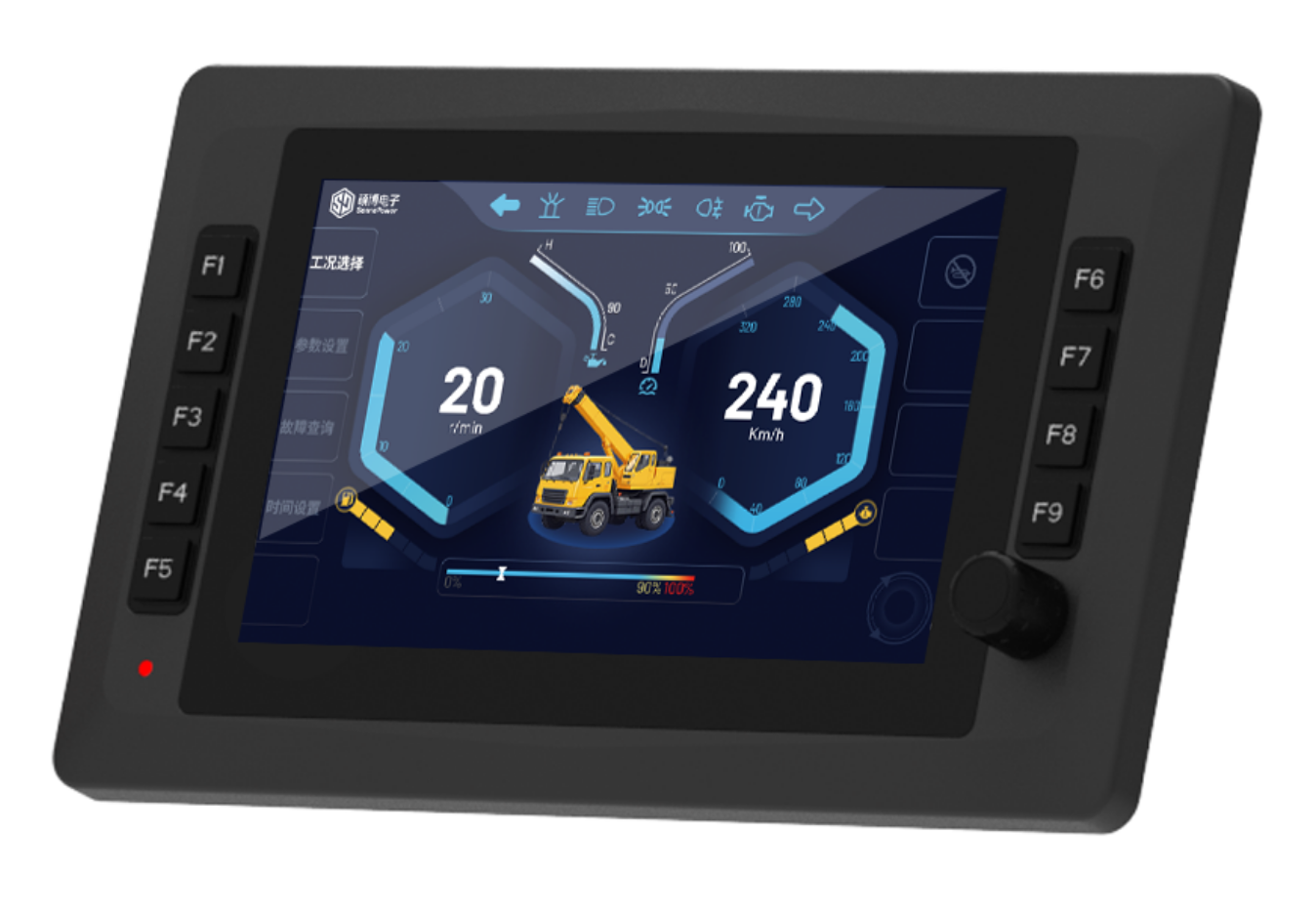

7-inch CAN color display SPD-070-Bx series

-The input power supports wide voltage input, with a range of 8 to 32V, making it suitable for dedicated vehicles operating at both 12V and 24V.

-Complies with standards such as IEC61000-4-2, IEC61000-4-4, IEC61000-4-5, and ISO7637.2.

-Has high integration and rich resources.

-All ports have diagnostic and protection functionalities.

-All ports support power supply misconnection protection, as well as short-circuit and overheating protection on output ports.

-All digital output ports are equipped with short-circuit feedback, short-circuit protection, and overheating protection.

- 7-inch CAN color display has an IP67 protection class.

●Power supply 8-32VDC

●Communication 5×CAN 1×RS232

●Protocol User-defined

●Dimension:7 Inch

●Programming environment CoDeSys 3.5

●Resolution Ratio 800×480

●Brightness 400/≧600cd/m²

●9 Keys + 1 Rotary Knob (With Button)

●Touch technology: Capacitive Touch

●Total IO 20 (20 inputs/8 Outputs）

  ●Analog Inputs: 16×AIU, 8×AIR, 8×AII

  ●Digital Inputs: 20×DIH, 8×DIL

  ●Pulse Inputs: 4×PI, 1×PI(AB)

  ●Digital Outputs: 8×DOH, 8×PWMiH
