Communication: 2 ✕ CAN 1 ✕ RS232 1 ✕ ETHERNET
Total IO: 8 (4 inputs/4 outputs)

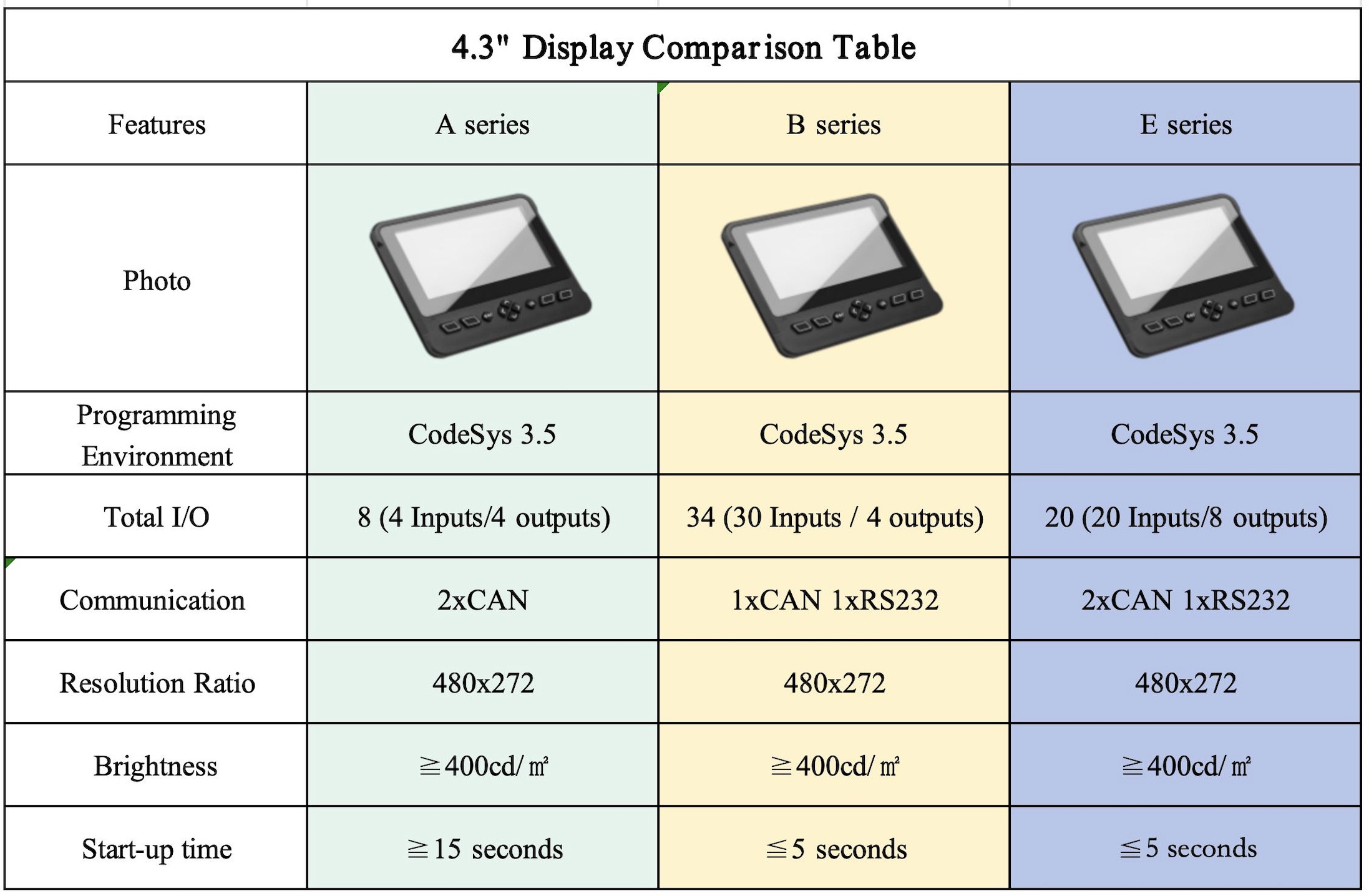

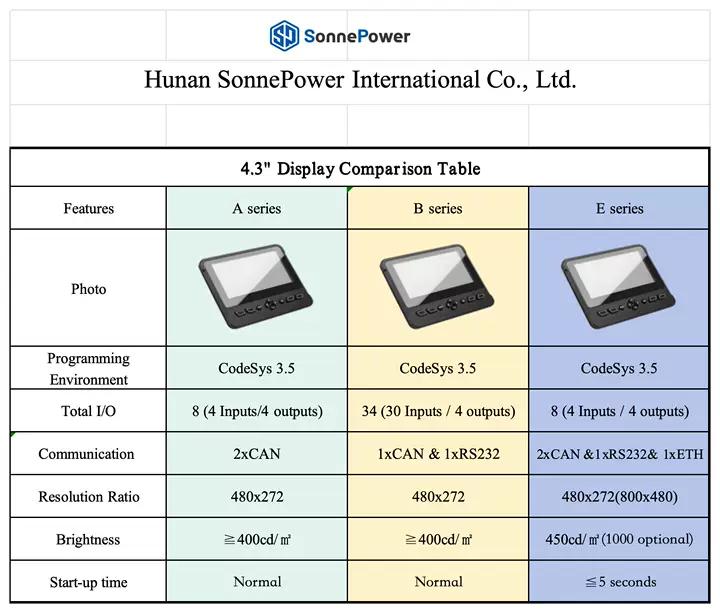

SonnePower also provide 7" Screen Display, 12.1" Screen Display, or as your requirements to Custom

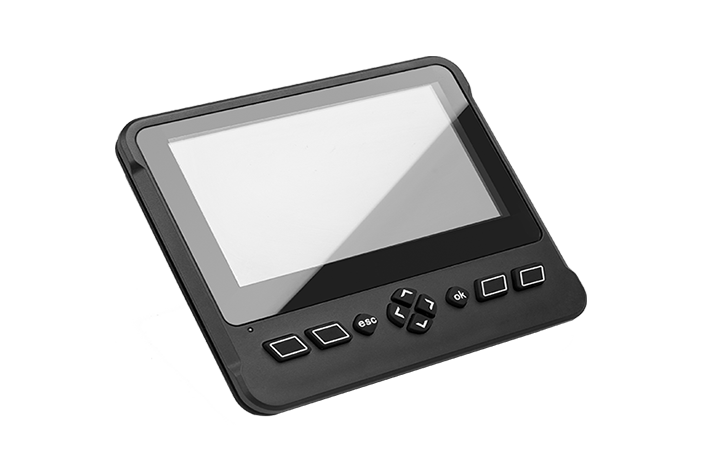

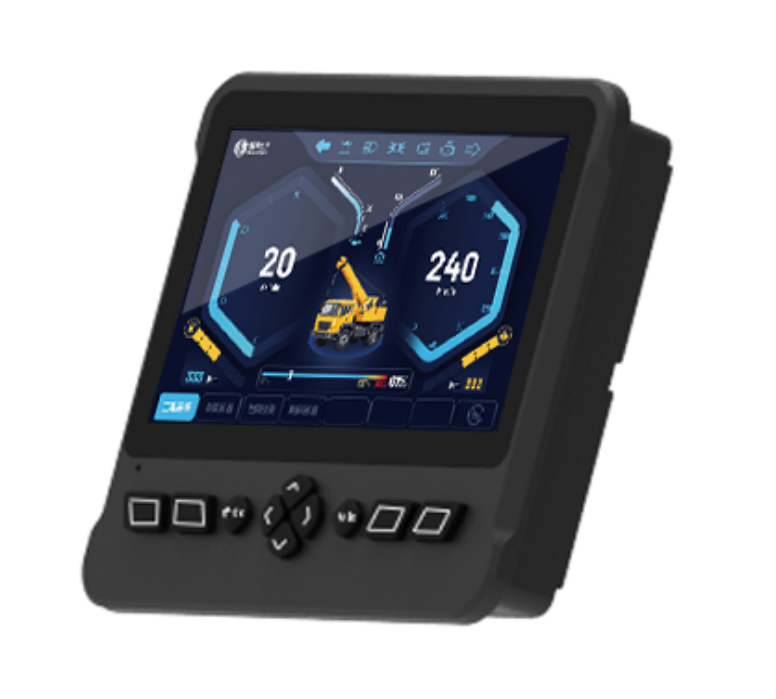

Developed by SonnePower, this cost-effective HMI features CODESYS 3.5 SP19 programming environment. Available in two configurations:
Standard version: 480×272 resolution, 24-bit color, 450 cd/m² brightness
High-end version: 800×480 resolution, 24-bit color, 1000 cd/m² sunlight-readable brightness
Key Features:
✓ Dual CAN bus interfaces
✓ 1× RS232 serial port + 1× Ethernet communication
✓ 8× multifunctional I/O channels (supports switch signals, voltage/frequency input)
✓ 3A digital output (direct solenoid valve drive capability)
Engineering Advantages:
• Compact size with high integration
• Ultra-fast boot time
• Ideal for distributed control systems
• Optimized for human-machine interaction in mobile equipment
| Housing Material | Plastic |

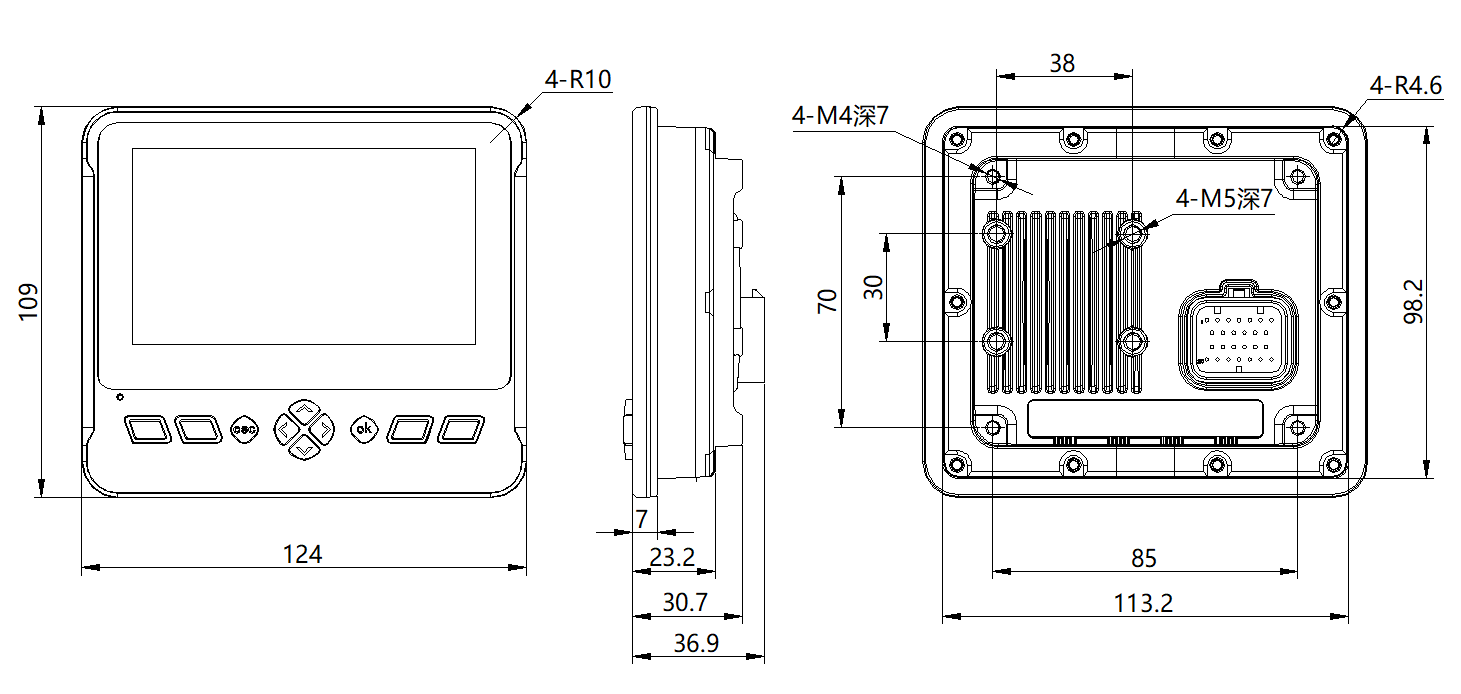

| Size | 124 x 109 x 41.6 mm |
| Installation | Embedded and RAM bracket installation |
| Connector | 26-pin AMP connector |
| Weight | 0.36kg |
| Working voltage | 8～32V DC |
| Working temperature | -20～+70℃ |
| Protection class | IP65 |
| Display screen type and size | 4.3 inch 24 bit color screen |
| Display area | 95.04×53.86 |
| Brightness | ≥400cd/m2 /≥1000cd/m2 |
| Resolution | 480×272 |
| Number of programmable function keys | 10 buttons with backlight |
| Input/output channel/IO total | Configurable (4/4/8) |
| Input | Configurable up to 4 inputs |
