Power supply 8-32V DC
Communication 1×CAN
Protocol User-defined

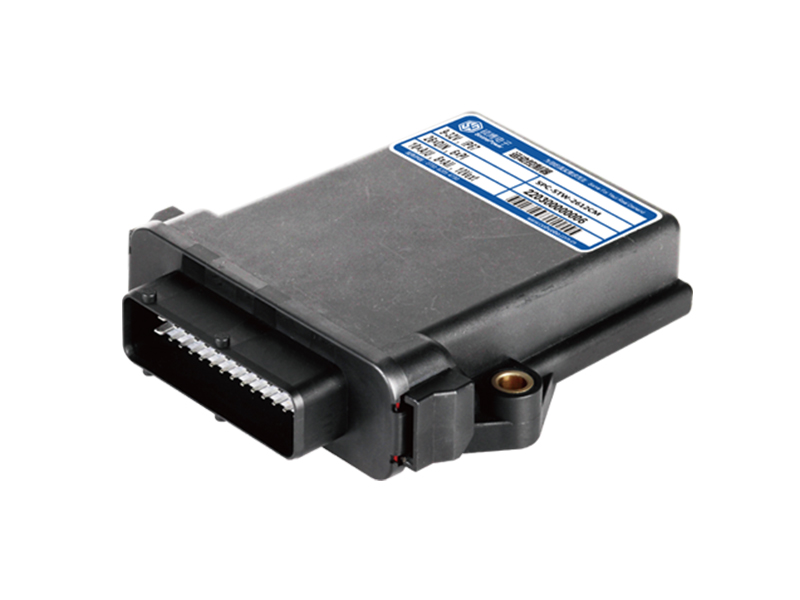

SPC-SDIO-0824 CAN I/O module is designed for use in harsh environmental conditions. By encapsulating electronic components within a compact plastic casing and utilizing sealed connectors, it achieves an IP67 protection rating. Digital information and analog voltage can be detected and used as input signals for processing. Eight proportional valves can be controlled through pulse-width modulation (PWM) outputs.
Power supply 8-32V DC
Communication 1×CAN
Protocol User-defined
Max Load 20A
Total IO 32 (32 inputs/24 Outputs）
7×AIU (0-5V)
32×DIH
24×DOH (3A)
8×PWMH (3A)
3×PI(≦11KHz)
1×Vout (0.6-5V, Max 250mA)
