Communication: 1✕CAN
Total IO: 26(26 inputs/ 12 outputs)
Max. Load: 15A

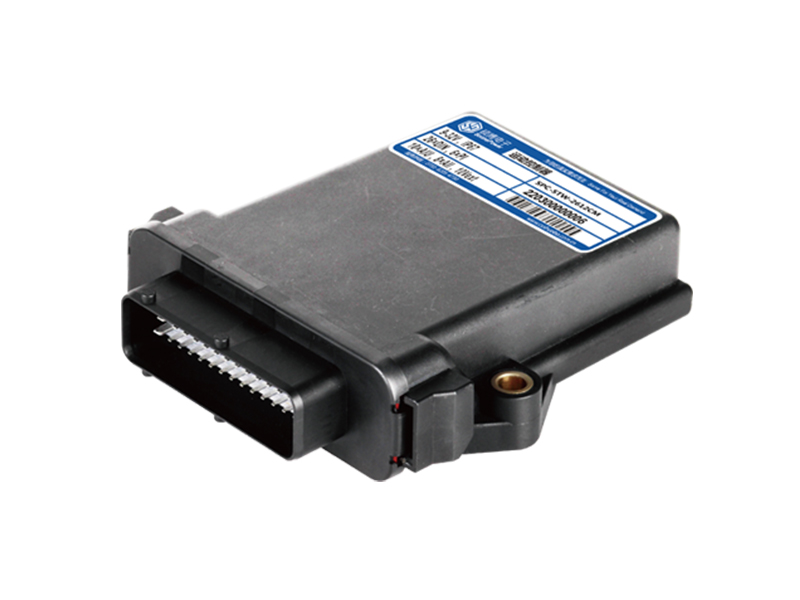

SPC-SDIO-1412CF is an economical intelligent distributed IO developed by SonnePower. This product features 1 channel of CAN bus and 26 IO resources with high port density. The input ports can collect signals such as high-level and voltage. The output resources include DOH/PWMH with a capacity of 3A, which can directly drive solenoid valves. Additionally, it has 6 channels of proportional valve PVC functionality (PWMiH). Moreover, this product boasts high protection level, small size, high integration, flexible port configuration, and fast response speed. These advantages make it an ideal choice for the main controller in distributed application scenarios.
32-bit high-performance CPU.
26 IO resources with high port density, capable of configuring up to 10 PWM outputs.
Supports 1 channel of CAN bus and is compatible with the CANOpen protocol.
1 blue status indicator light.
All input ports are equipped with protection against incorrect power and ground connections.
All output ports have short-circuit and overheat protection.
Protection level: IP67, suitable for use in harsh environments.
IO Resources for SPC-SDIO-1412CF

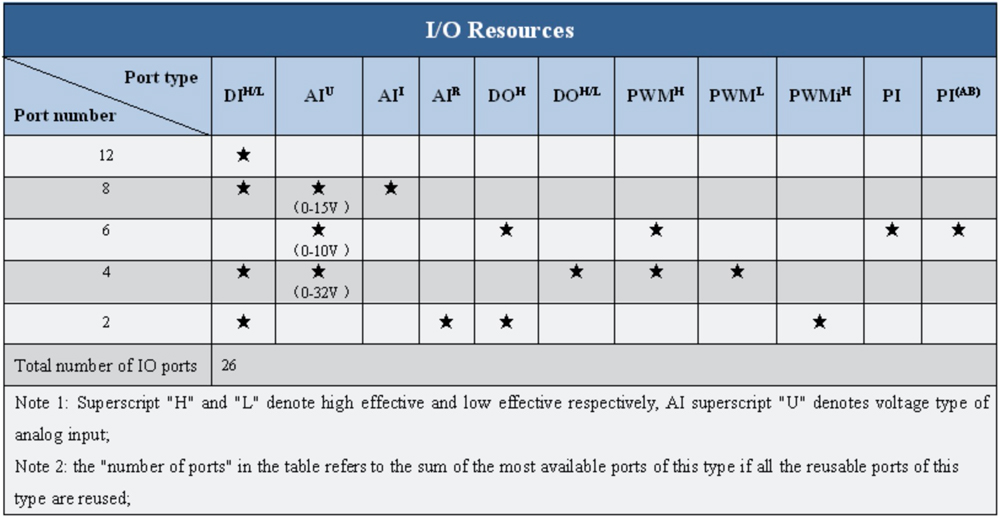

IO Resources for SPC-SDIO-1412
