Communication: 1×CAN
Protocol: User-defined
Resource: 20 keys 1×DOH
Customized Key Pattern

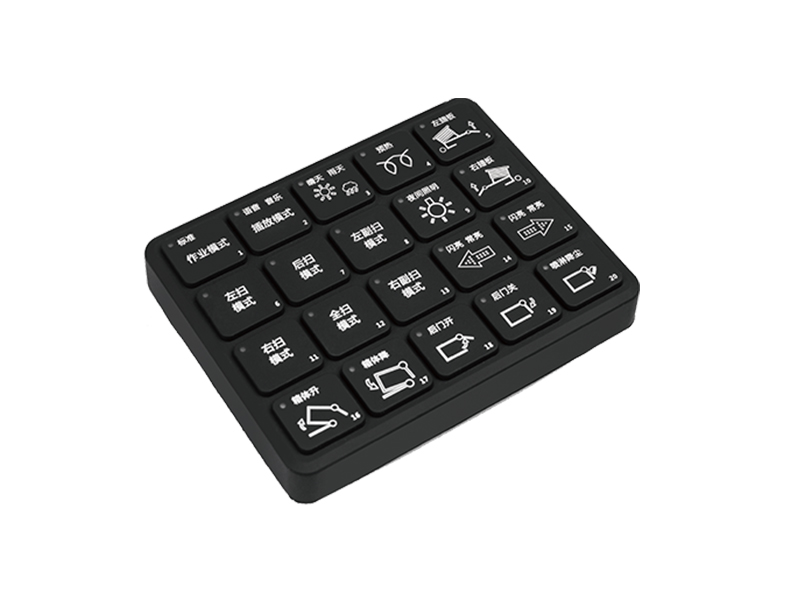

SPM-KEYP-A20 is a sophisticated operating panel developed by SonnePower. This product is not only equipped with 1 CAN bus and 1 high side output, but also equipped with 20 soft silicone buttons. In addition, its excellent protective performance, compact exterior design, high-speed response, and long service life make it an ideal operating interface choice in distributed application scenarios.
SPM-KEYP-A20 stands out in the field of operation panels with its unique advantages, providing unparalleled functionality and reliability for the operational requirements in modern distributed environments.

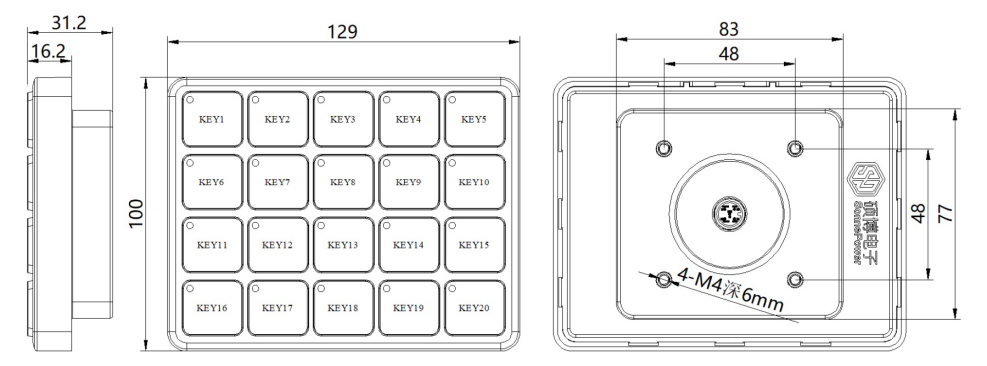

| Size | 129×100×31.2mm |
| Material | Plastic housing + Silicone panel |
| Working Voltage | 8～32V |
| Working temperature | -40～+85℃ |
| Protection class | IP65/IP67 (with cable) |
| Processing unit | 32-bit High Performance MCU |
| Key | 20 silicone keys |
| Key life | 500000 times (mechanical key) |
Communication: 1×CAN
Protocol: User-defined
Resource: 20 keys 1×DOH
Status Indicator: RGB three-color LED
Backlight: White Adjustable Brightness
Customized Key Pattern
