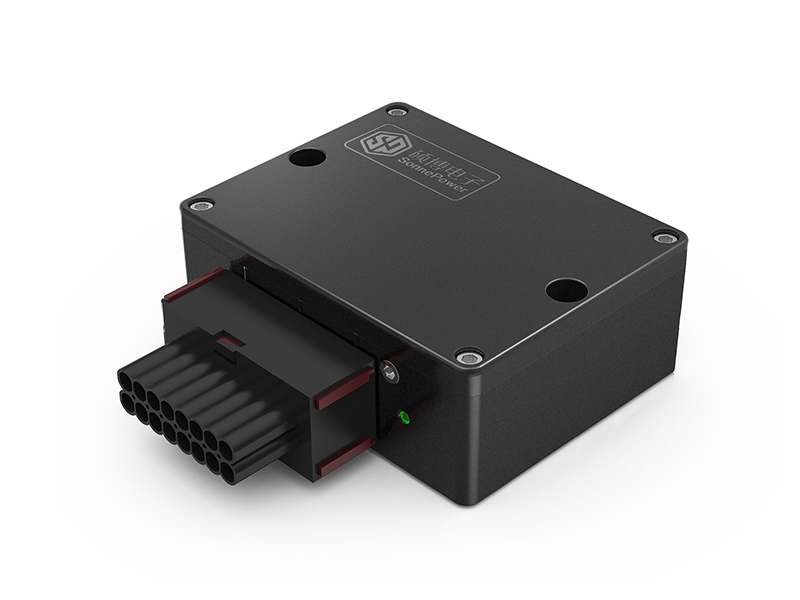

The SPC-SDIO-S0711 Intelligent Distributed IO is a cost-effective solution developed by SonnePower. With 1 CAN bus and 11 IO resources, this product offers highly multiplexed ports. The input ports can collect signals such as high levels and voltage. Its output resource, DOH/PWMH (3A), enables direct driving of solenoid valves. Additionally, it features a 4-way proportional valve PVC function (PWMiH).
This product stands out with its high protection level, compact size, high integration, flexible port configuration, and quick response speed. These qualities make it an ideal choice as the main controller for distributed applications.
Moreover, this product stands out with its high protection level, compact size, high integration, flexible port configuration, and rapid response speed. These qualities make it an excellent choice as the main controller for distributed applications.
· Powerful 32-bit CPU for high performance
· 11 channels IO resources with high port multiplexing rate
· Supports up to 11 channels PWM and 4 channels proportional valve PVC configuration
· Features 1 channel CAN with CANOpen support
· Blue status indicator for visual monitoring
· All input ports have protection against wrong connection to power supply and ground
· Output ports equipped with short-circuit and overheating protection
· IP67 protection grade for durability in harsh environments
| Housing Material | Aluminum |
| Size | 100×91×39.1 mm |
| Installation | 2 x M5×30 (side) or 2 x M5×10 (bottom) screw mounting |
| Connector | 16-Pin Tyco |
| Weight | 0.37kg |
| Working temperature | -40...85 ℃ |
| Protection class | IP67 |
| Total IOs | 11 channels (9 inputs/2 outputs) |
| IO resource | 7xAIU (0-10V)/DIH; 7xDOH (3A)/PWMH(3A); 4xDOH(3A)/PWHiH（3A, current feedback range 0.2-3A) |
| Input | Up to 7 inputs can be configured |
Mobile Crane
Aerial Work Machines
Fire Fighting Machinery
Earthmoving Machinery
Sanitation Machinery
Agricultural Machinery
